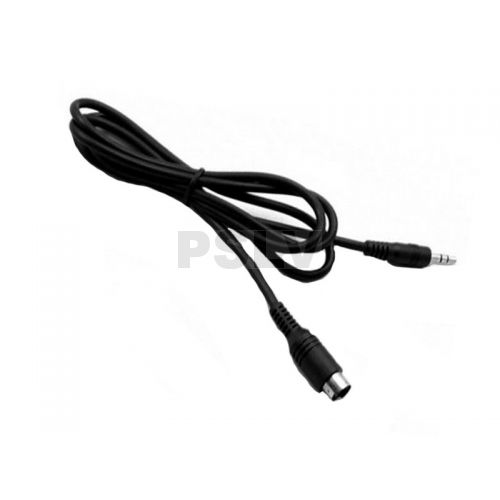

3501005 FatShark Head Tracker to 3.5mm Data Cable DX8,9X,TH9B

3501005  FatShark Head Tracker to 3.5mm Data Cable DX8,9X,TH9B

 This product allows you to connect your FatShark Dominator Goggles to a Spektrum DX8, FlySky TH9B, IMAX 9X, Turnigy 9X or similar radios which have the correct trainer functions to work with head trackers.

Note: Most JR/ Spektrum radios do NOT have the functionality to work with a head tracker. At this time only the Spektrum DX8 is known to work with head trackers.

Instructions for using with a Spektrum radio

- Do not connect the data cable to the Spektrum radio
- Enter the configuration mode on the Spektrum radio (hold the wheel down + Switch on the radio)
- Select Training in the menu, and enable the "master mode" for the channels which you have connected your servos to (AUX2 for Pan and AUX3 for Tilt for example)
- Switch off the radio
- Connect the data cable
- Switch on the radio and the goggles
- Now hold down the "Training button" on the Spektrum radio and your head tracker will work (when you release the button the head tracker will stop working and your servo will go back to centre)
