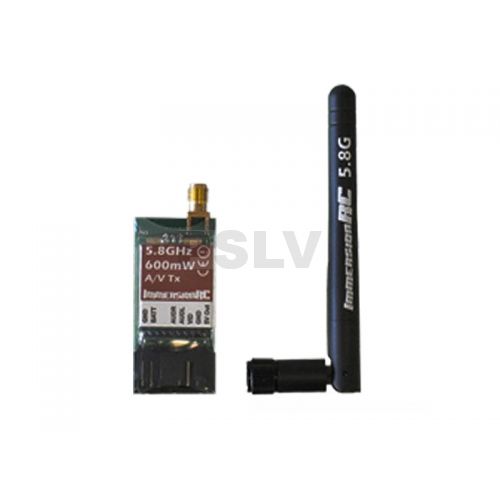

4701001 ImmersionRC 5.8GHz Long Range 600mW Transmitter

4701001  ImmersionRC 5.8GHz Long Range 600mW Transmitter

The solution to your 2.4GHz radio gear incompatibility issues - 5.8GHz video gear from ImmersionRC!  This 5.8 GHz Immersion RC video transmitter will work with the Fat Shark goggles such as the Attitude SD goggles and the ImmersionRC Uno or ImmersionRC Duo receiver’s. The ImmersionRC transmitter operates on the following frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860 MHz and the audio channels allows an easy way to use a telemetry downlink for the more demanding user.

Measures just 50x23x15mm and weighs only 16g!

The product will accept an input voltage of 6-25V (2S-6S) and includes a sophisticated switching regulator to power itself and your 5V camera cleanly and efficiently.

Dipole antenna, power lead and bare wires input pigtail cable included.

Specifications:

• 600mW output power
• Frequencies (Airwave): 5740MHz, 5760MHz, 5780MHz, 5800MHz, 5820MHz, 5840MHz, 5860MHz
• Super-quiet, high efficiency switching regulator
• Small, light weight, all-in-one A/V transmitter solution
• 5V camera power, ideal for a KX131/ SN555, is generated onboard.
• No interference with sensitive RC equipment by design
• High bandwidth stereo-audio channels, ideal for sending down high-speed telemetry data.
• Two sets of A/V connectors, for easy patch-in of an audio source
• FM Audio/ Video Modulation
• 50 ohm antenna impedance
• 1Vpp Video Input level
• 3V pp Audio Input Level
• Input Voltage Range: 6 – 25V (2S-6S)
• For use by licensed Radio Amateurs only in the UK.  May also require a licence to operate in other countries.  Please check before use.
• 16 grams

Nb. Never power up a transmitter without the antenna attached. This will damage the transmitter.
