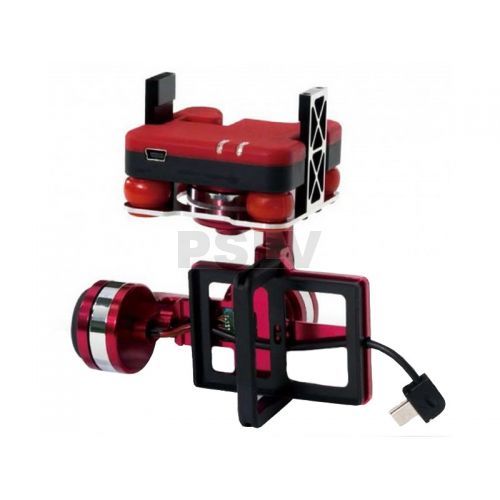

RGG201XT Align G2 3 Axis Gimbal

RGG201XT Align G2 3 Axis Gimbal

Align G2 gimbal is specially designed for GoPro and Align action camera. G2 gimbal features advanced control system with superior computational power and the high precision brushless motors provide excellent
agility and stability as well as powerful functionality. Support the use of satellite receivers and S.BUS/X.BUS receivers and supports programmability through PC interface, or connectivity to iOS/Android smartphones through Bluetooth. Enable you to enjoy aerial photography.

1. Comprehensive and high precision 3-axis brushless gimbal.
2. Multi-function 3-axis gimbal modes.
3. Support PC and iOS and Android system with Bluetooth interface.
4. Accurate fixation, high resolution brushless motor.
5. Standalone system can be operated independently.
6. Support the use of JR /Spektrum satellite receivers and S.BUS/X.BUS receivers.

G2 Gimbal Specification
● Input Voltage: DC 12V(3S)
● Current Draw: <500mA
● Maximum Control Range:
PAN 340°
ROLL ±20°
TILT 120°
● Maximum Control Rotation Rate:
PAN 60°/s
ROLL 60°/s
TILT 60°/s
● Temperature Range: -20~80°C
● Voltage Output：5V / 0.3A
● Dimension: 100.4x74x111.5mm
● Weight: Approx. 200g

Box Content
●G2 Gimbal
●G2 Gimbal Mount x 1
●M470 Frame Mounting Bolt(M2.5x28mm) x 4
●Socket Screw(M2.5x6mm) x 4
●M2.5 Screw(M2.5x10mm) x 4
