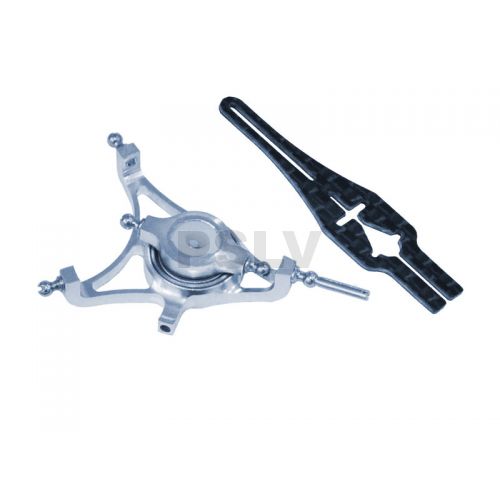

LX0393 Lynx Heli Innovations NANO CPX Swash Plate Pro Edition Silver

 LX0393  Lynx Heli Innovations NANO CPX Swash Plate Pro Edition Silver

Lynx Heli Innovations has redesigned the standard Nano CPX  plastic swashplate, using a combination of aluminum alloy and techno polymer. The PRO Edition have corrected anti-rotation  pin position making perfect the swash plate geometry eliminating any interaction and binding movement. The PRO Edition was designed specifically for intense 3D fly.

Lynx PRO Edition Swash plate design is based over standard Nano CPX Lynx swash plate, were we modify the anti-rotation pin position, and the rear swash linkage ball become the new antirotation pin.

The new antirotation bracket is made by a carbon fiber plate that need simply and quickly glued in the plastic frame.

Micro helicopter upgrades can be a trap – often they look nice but do little for function, and only add weight.

We spent time optimizing the design and fly testing to achieve the required strength with a final weight beyond compromise. We are pilots, and we demand a light helicopter.

Details and design combined with strength, durability, accurate CNC tolerances, finish, and most important lightweight, will increase and assure flight precision, flight after flight, adding top performance in your Nano CPX.

Lynx Nano CPX PRO Edition Swashplate the new frontier of lightweight and high precision swash plate for your Nano CPX.

FEATURES:

-        Relocated anti-rotation pin for the correct swash plate geometrically movement.

-        Specifically design for advanced 3D pilot and intense 3d fly

-        Smooth and fluid swash plate movement in any extreme swash plate move.

-        Steel  Linkage balls to maximize wear and shock resistence.

-        High quality ABEC5 SST radial bearing for maximum precision and durability

-        Direct replacement for the standard Nano CPX part

-        Preassembled with lock thread linkage balls and lubricated bearing.

-        FEA (Final Elements Analysis) assisted, achieve lightweight and maximum strength.

TECHNICAL SPECIFICATION:

-        Swash Plate Material: Aluminum 7075-T6 – Silver

-        Linkage Balls Material: Crhome Steel

-        Bearing material: SST –ABEC5 Precision Class

-        Assembly weight (including antirotation bracket): 1.21g

PACKING LIST:

-        1 x Nano CPX CNC Swashplate PRO Edition factory assemblies Silver

-        5 x Silicone O-Ring ID 1 x W1

-        1 x Carbon Fiber Anti-Rotation Bracket
