LX0497 Lynx Heli Innovations GOBLIN 500 Cyclic Standard Size Servo Mount

Lynx Heli Innovations we are 3D pilot and we fly the same helicopter as you.

Goblin 500 comes with cyclic mini servo. Lynx has redesigned the standard Goblin 500 servo support giving the option to install Standard size servo.

The main reason of this upgrade is to allow you to install stronger, faster and more precise servo using the classic servo size normally used in bigger class heli.

Lynx made this simple design different! The vertical STD servo support plates are made by 3K Carbon OEM in Lynx factory and the servo tabs are just innovative per design and function.

Lynx servo tab have M2.5 thread holes, this design don’t need any nuts. You will be amazed by the easy, quick and absolute solid installation.

The best STD servo support for you Goblin 500.

FEATURES:

- Possibility to use STD servo size to achieve better cyclic response and resolution

- Lynx CNC servo tab with built-in M2.5 thread for the quick and stronger installation

- FEA (Final Elements Analysis) assisted, achieve lightweight and maximum strength.

TECHNICAL SPECIFICATION:

- Servo Support Material: Carbon 3K – 3mm thickness

- Servo Tab Material: Aluminum 7075-T6 – clear – Silver (Red) -  anodized finish

- Hardware Material: Carbon Steel

- Assembly weight: 18.20 g

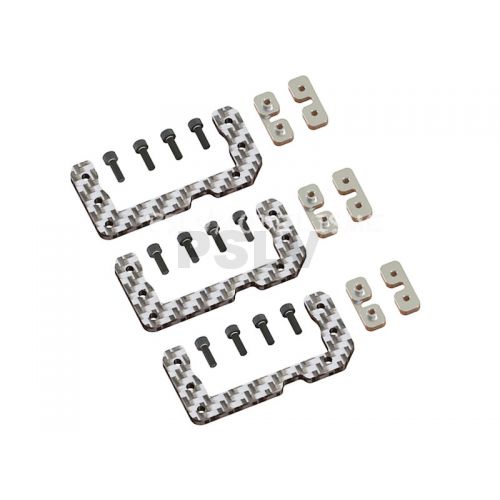

PACKING LIST:

- 3 x STD servo Carbon Fiber plate

- 6 x Servo Tabs

- 12 x Hex Cup Screw M2.5x8
