LX0374 Lynx Heli Innovations T REX 700 Third Bearing Block DFC Combo

LX0374  Lynx Heli Innovations T REX 700 Third Bearing Block DFC Combo

Lynx design a Main Shaft / Third Bearing Block for your T-Rex 700 DFC.

Using exotic Carbon Steel material with extremely higher Tensile Strength we realize new T-Rex 700 DFC Main shaft and we combo with a super light CNC  third bearing block. This combo is designed to support the high stress domain in T-Rex700 hard core fly, without compromise of security and resistance. Our combos increase the frame stiffener and reduce dangerous in-fly frame flexion. Lynx Shaft replace the standard DFC T-Rex 700 shaft, but have the lower side longed to fit perfectly in the third bearing block.

This upgrade combo will support your need of fly security and power transmission without compromise.

FEATURES:

- Adding the Third Bearing block features we increase the frame stiffener and reduce “in-fly” flexion.

- Increase power transmission efficacy

- Special Hardened Carbon Steel shaft for a rigid fly performance and maximum fly security

- Easy and quick use, because replace the std T-Rex 700 heli parts

TECHNICAL SPECIFICATION:

- Main Shaft Material : Hardened 50HRC Carbon Steel

- Third Bearing Block Material: Aluminum 7075T6 – Silver Color anodized

- Hardware Material: 12.9 Class Carbon Steel

- Bearing Material: ABEC 5 Chrome Steel – Japan Made

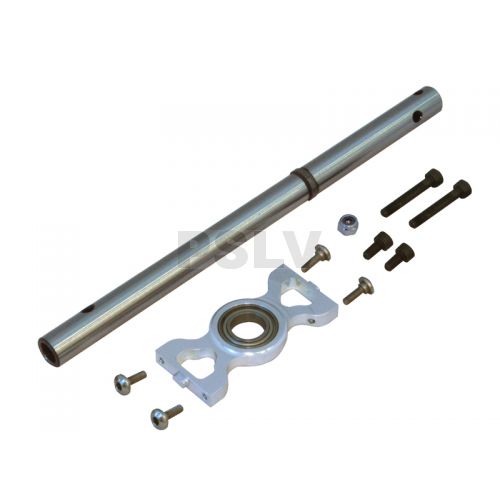

PACKING LIST:

1 X T REX 700 DFC – Heavy Duty Main Shaft

1 x T REX 700 CNC Third Bearing Block

1 x Radial Bearing 12X21 H5

2 x Hex Cup Screw M4X8

1 x Self Lock Nut M4

2 x Hex Cup Screw M4X30 Shouldered

4 x M3 Flange Button Frame Screw
