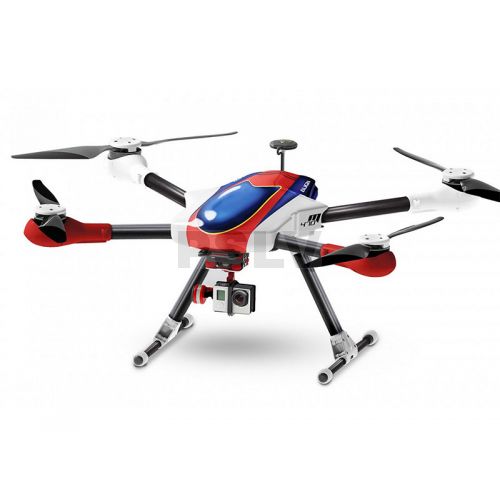

RM47001XT Align M470L Super Combo With Gimbal

RM47001XT Align M470L Super Combo With Gimbal

Specification
● Airframe Diameter: 710mm
● Height: 266mm
● Main Blade Length: 179mm
● Main Rotor Diameter: 391mm
● Flying Weight(without battery): 2500g

G2 Gimbal Specification
● Input Voltage: DC 12V(3S)
● Current Draw: <500mA
● Maximum Control Range:
PAN 340°
ROLL ±20°
TILT 120°
● Maximum Control Rotation Rate:
PAN 60°/s
ROLL 60°/s
TILT 60°/s
● Temperature Range: -20~80°C
● Voltage Output：5V / 0.3A
● Dimension: 100.4x74x111.5mm
● Weight: Approx. 200g

APS-M Flight Control System Specification
●Input Voltage:DC 4.5~8.4V
●Operating Current Consumption:<250mA @ 4.8V
●Operating Frequency：400Hz
●Operating Temperature：-20℃~65℃
●Hovering Precision (Depending on Satellite Status)：Horizontal ±1m Vertical ±1m
●Maximum Flight Speed：Horizontal 15m/sec Vertical 6m/sec
●Maximum Altitude Restriction：700m(2297ft) above the takeoff point
●Maximum Angular Speed：
Aileron 115°/sec
Elevator 115°/sec
Rudder 145°/sec
●Maximum Tilting Angle：30 degrees
●Supports External Peripherals："G2/ G3 Gimbal、OSD+FPV Video Transmitter "
●Supports Multicopter Configurations："4 rotors +, 4 rotors X, 6 rotors +, 6 rotors X, 8 rotors +, 8 rotors X."
●Dimension：49x34.3x20mm

PCU Power Control Unit
●Input Voltage：13.2V~25.2V(4S~6S Li-Po)
●Operating Frequency：500KHz
●Dimension：62x35x26mm

BL4213 Motor 370KV(RPM/V)
●Input Voltage：DC 22.2V
●Max Continuous Current：25A
●Max Continuous Power：550W
●Stator Arms：12
●Magnet Poles：14
●Dimension/Weight：φ4xφ52x33mm / 185g

Motor ESC
●Input Voltage：13.2V~25.2V(4S~6S Li-Po)
●Max Continuous Current：40A
●Dimension：74.2x27x12.7mm
