010-0132-00 QuadPack 25, 25AMP Multi-Rotor (4Pc)

010-0132-00  QuadPack 25, 25AMP Multi-Rotor (4Pc)

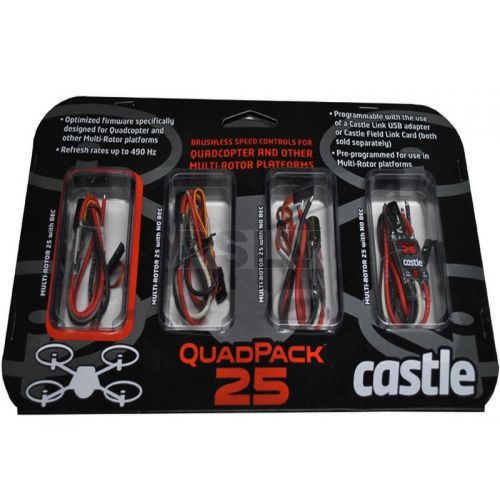

QuadPack 25, 25AMP Multi-Rotor (4)Pack 010-0132-00 Castle Creations is proud to introduce the QuadPack 25. This pack of four 25-amp multi-rotor ESCs is equipped with three (3) ESCs without a BEC and one (1) with a BEC*. Each ESC has optimized firmware specifically designed for quadcopter and other multi-rotor platforms. Refresh rates up to 490 Hz give your platform optimum stability and maneuverability without missing a beat. QuadPack 25 comes preprogrammed for multi-rotor platforms and is recommended for platforms ranging from 450 to 650 sizes pulling up to 25 amps** and running up to 6S LiPo. As with all Castle ESCs, this product is easily programmable using the Castle Link USB adapter (sold separately).

*The single BEC supplies power for all 4 controllers.

**RC HOBBY APPLICATION RATING: 25 amps for the duration of a single 4,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.

Specifications

Item number 010-0132-00
Input voltage MIN: 2S LiPo MAX: 6S LiPo
Max continuous amperage at full throttle 25 amps**
BEC voltage (voltage regulator for powering radio and servos) 5.5 volts*
BEC output 8 amp peak***
3 amp continuous
(always check servo draw prior to first flight)
Dimensions
Width: 0.72" (18.2mm)
Length: 1.72" (43.7mm)
Depth: 0.32" (8.1mm)
Weight with wires (each) 0.63 oz. (17.8g)
Weight without wires (each) 0.32 oz (9g)
Battery connector and motor connectors sold separately
BEC Voltage: 5.5V; 5A continuous, 7A peak
