GSR-5030DM Gryphon Multicopter Power Disc BEC

GSR-5030DM  Gryphon Multicopter Power Disc BEC

The Gryphon Power Disc Dual BEC.

Dual voltage BEC regulator designed for Multirotors systems.

It accepts voltages inputs from 14.4V up to 30V(4~7 LiPo Cells), and has 2 independant BEC outputs.

User selectable 5.6~8.4V, 5A on BEC1 output (For Camera, Retractable landing gears, Gimbal servos,flight controllers...)

And 12V, 3.5A on BEC 2 output (Camera, Video Transmitter, LEDs..)

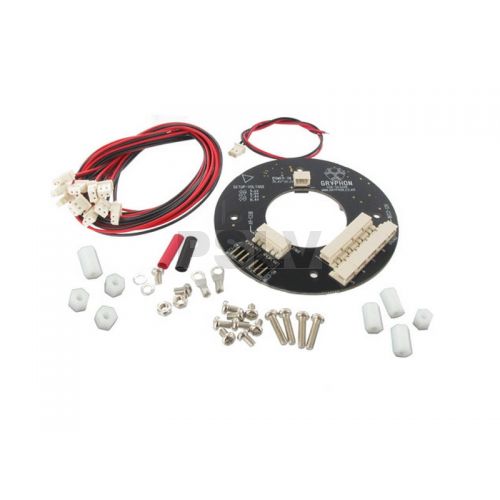

CONTENTS

1. Main PCB : 1 EA
2. Power Output Molex Connector Cable(L=30cm) : 11 EA
3. PCB Post Female-Female 3 x 5mm : 4 EA
4. PCB Post Female-Female 3 x 10mm : 4 EA
5. Socket button head screw M3 x 5mm : 8 EA
6. Socket button head screw M3 x 12mm : 4 EA
7. Power Input Molex Connector Cable Ass’y : 1 EA

SPECIFICATIONS

Input voltage : 14.4V~30V(3~7 LiPo Cells)

Output voltage : BEC1 : 5.6V, 6.0V, 7.4V, 8.4V Selectable

BEC2 : 12.0V

Output current : BEC1 : 5A(Continuous) @ 22.2V

BEC2 : 3.5A(Continuous) @ 22.2V

Size : (Φ)100mm x (H)11mm

Weight : 28g (Exc. Cables)

The Power Disc Dual BEC is fully compatible with the Gryphon Power Distribution Board.
