LX0364 Tail Boom Clamp Silver 300 X

LX0364     Tail Boom Clamp Silver  300 X

he 300 X is an amazing 300 class RTF helicopter. Lynx has looked closely at the helicopter’s performance, and we have found a number of areas for improvement. One issue we noted was the standard heli Tail Boom Clamp.

These parts originally in plastic can’t clamp the boom as need, than vibe or tail wag can upend, reducing the tail system performance.

Lynx Heli Innovations has redesigned the standard 300 X plastic tail boom clamp, using aluminum alloy.

We designed a clamp that once installed will lock perfectly the boom making the tail system “rock-solid”. Like any Lynx part we aim for the strongest part with the lightest weight. We always look for upgrades that will not compromise helicopter performance.

The details and design of this tail servo mount add top performance and an exotic look to your 300 X tail system.

 FEATURES:

- Direct replacement for the standard 300 X tail parts.

- Optimized tail boom support for a “rock solid” clamp.

- Increased rigidity of the tail system improving tail performance reducing wag and vibes.

- FEA (Final Elements Analysis) design assistance, achieving the lightest weight with the maximum strength.

 TECHNICAL SPECIFICATIONS:

- Tail Boom Clamp Material: Aluminum 7075-T6 – Silver anodized finish.

- Screw material: Carbon steel 12.9 class

- Assembled weight (including hardware): 1.74g

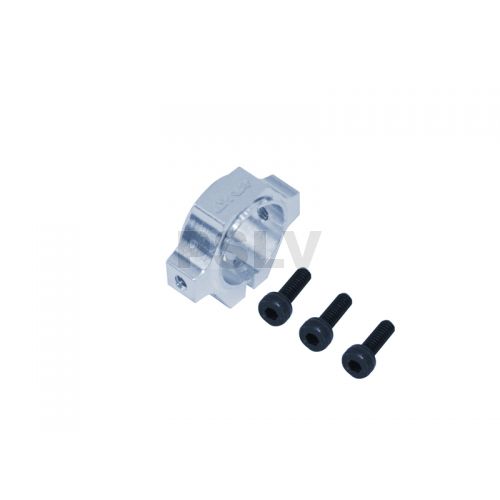

PACKING LIST:

1 x CNC 300X Tail Boom Clamp

3 x M2x6 Hex Cup Screw
