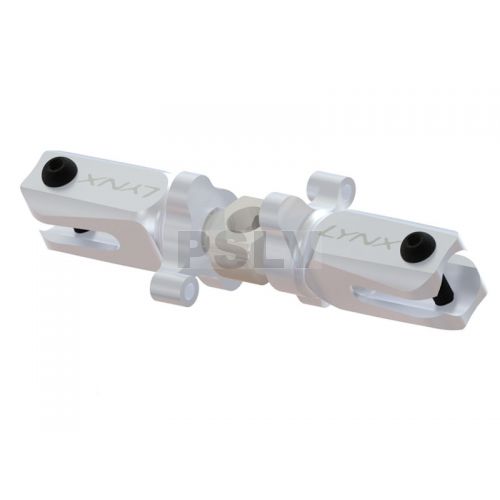

LX0896 Lynx Heli Ultra Tail Rotor Hub Thrusted Silver Mini Protos

 LX0896  Lynx Heli Ultra Tail Rotor Hub Thrusted Silver Mini Protos

Lynx Heli Innovations has redesigned the standard Mini Protos tail blade hub assembly, using aluminum alloy and steel.

Our Mini Protos tail grip have thrust bearing and counter-weighted with integrated CNC weigh, positioned very close the tail shaft rotation center, in order to increase efficiency and reduce vibes.

The counter couple weights are sized to reduce the servo load during fly, giving faster tail response, less vibration and increase tail servo longevity.

Mini Protos Lynx tail rotor hub have double radial bearing 3x6 w2 and thrust bearing 3x6 w3.5 in order to get the shorter tail grip.

That system was over tested and approved to assure smoothness and precision functions without vibes, even when fly at very high head speed.

Special O-Ring system that pre compress the radial bearing are used to reduce play and vibration.

Calibrated counterbalanced cavity in the tail Hub assures the perfect assembly balancing.

The details and design of these tail grips add top performance in your Mini Protos tail system.

We spent hours optimizing the design to achieve the required strength with a final weight beyond compromise. We are pilots, we expect from our upgrade a better performance.

FEATURES:
- Direct replacement for the standard Mini Protos tail parts.
- Thrust Bearing Design to increase tail response and reduce vibration.
- Preassembled with lock thread and greased bearing.
- SST linkage balls to assure durability and wear resistance
- Integrated CNC counter balance weight to reduce servo load during fly maneuvers, giving faster tail response, less vibration and increase tail servo longevity.
- Counterbalanced Hub for the ultimate smoothness and vibe free operation.
- Designed and tested with very high head speed, (over 4000 rpm).
- FEA (Final Elements Analysis) design assisted, achieve lightweight and maximum strength.
