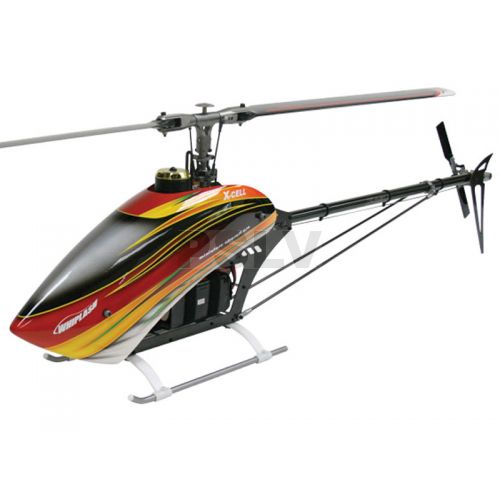

1032-4 Miniature Aircraft Whiplash 700EX FBL (Réserve le votre)

1032-4  Miniature Aircraft Whiplash 700EX FBL (Réserve le votre) Produit non diponibles livraison prevu 01/10/2013

Whiplash Features:


Chassis: • New aggressively-styled, stiffer frames with side-by-side battery mounting for better GC control, increased cyclic and tail rate capabilities for more locked-in, slop free controls, and easier battery change-outs. • 20° helical drivetrain with hardened steel pinion gear and CNC machined main gear. • Improved gear ratios of 9:1 and 9.75:1 to match today's motor Kv market better. • Newly designed, maintenance free sealed one-way radial bearing with higher torque and freewheel load capabilities. • Adjustable motor mount for fine tuning gear mesh. • Steel-sleeved main gear hub eliminates middle bearing block wear. • True T6-6061 CNC machined aluminum components • CNC machined aluminum triple main shaft bearing blocks  • Narrowed tuff strut landing gear • Ball bearing supported pinion gear  • Improved electronics placement and wiring options

Rotor Head: • Direct controlled 120 (degree) CCPM  • Heavy duty linkages • 9mm head axle • CNC machined aluminum swashplate • CNC machined main rotor grips • CNC machined main rotor head • High quality swashplate heim ball/ball bearing

Tail Rotor:  • Full ball/thrust bearings  • Graphite tail fin • CNC aluminum “open” gearbox  • Aluminum 22mm tail boom • Positive control system • Hardened tail rotor output shaft • Carbon/Aluminum boom supports and CNC machined aluminum boom clamps

Canopy: • New high-visibility painted canopy by CanoMOD™

Model Specifications:

• Length: 52.5" (1333mm)
• Height: Flybar - 16.5” (419mm)
• Rotor Span: 1561-1601mm - 690-710mm blades
• Tail Rotor Span: 286mm with 105mm T/R blades
• Avg. Ready-to-Fly Weight: 11.5-12.5lbs - 5.22-5.67kg (w/batteries)
• Main Drive Ratio: 9.75:1 (9:1 options)
• Tail Drive Ratio: 4.5:1
• Main Rotor Blades: 690-710mm
• Recommended Power: 12S, 500-560KV

Photos
