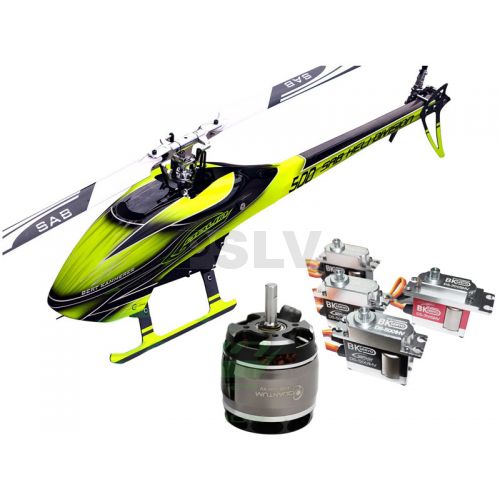

SG504 Sab Goblin 500 Flybarless Electric Helicopter Yell/Black Kit Combo
 Les photos sont donne a titre indicatif et non contractuel Cliquer pour agrandir |
Prix :918,35€
|
Includes
- Goblin 500 Yellow/Black x 1kit)
- Bert Kammerer BK DS-5001HV Cyclic Servo x 3pcs)
- Bert Kammerer BK DS-7005HV Tail Servo x 1pc)
- Quantum 4120-1200KV Motor x 1pc)
General Specifications
• Main rotor diameter: 1136mm (with 500 mm blades)
• HPS Head (FBL Only)
• Main blade length: 470 to 500mm
• Tail rotor diameter: 226 mm
• Tail blade length: 80 mm
• Main shaft diameter: 10 mm
• Tail shaft diameter: 5 mm
• Spindle shaft diameter: 8 mm
• Gear Ratios 6.9-11 : 1
• Weight including electronics: 1900 g (excluding flight battery).
• 18T motor pulley included (other pulley sizes available)
•All pulleys are made for 6 mm motor shaft (5 mm motor shaft adapter included in kit)
Special Features:
• 18T motor pulley included (other pulley sizes available)
•All pulleys are made for 6 mm motor shaft (5 mm motor shaft adapter included in kit)
Special Features:
• Full carbon fiber boom
• Quick release battery tray system
• Sacrificial breaking point for landing gear and boom
• Unique “inside the boom” tail push rod design
Electronic Specifications
• Cyclic Servos: Mini size (36mm)
Normal and 3D Flight: Hitec 5245 MG, Align DS510M or DS515M, Savox SH1250, Graupner DES 678 MG, MKS DS-9660A, Futaba 9650
HARD 3D: Futaba BLS153, Graupner HBS660 HV, JR DS3717 HV, HITEC 7245 MG HV, JR DS3711 HV
Normal and 3D Flight: Hitec 5245 MG, Align DS510M or DS515M, Savox SH1250, Graupner DES 678 MG, MKS DS-9660A, Futaba 9650
HARD 3D: Futaba BLS153, Graupner HBS660 HV, JR DS3717 HV, HITEC 7245 MG HV, JR DS3711 HV
• Tail Servo: Standard size (40mm)
• Typical Speed Controller: 80/100A
Normal and 3D Flight: Kontronik Koby 90, YGE 100 LV
HARD 3D: Kontronik Jive 100 LV, YGE 120 LV, CC Talon 90
Normal and 3D Flight: Kontronik Koby 90, YGE 100 LV
HARD 3D: Kontronik Jive 100 LV, YGE 120 LV, CC Talon 90
• Motors: (Max Diameter: 52 mm, Max Height: 52 mm)
Normal and 3D Flight: Scorpion HK-4015-1070, Quantum 4115-1200
HARD 3D: PYRO 600-1200, Scorpion, HKIII-4020-1100/1350, Quantum 4120-1200
Normal and 3D Flight: Scorpion HK-4015-1070, Quantum 4115-1200
HARD 3D: PYRO 600-1200, Scorpion, HKIII-4020-1100/1350, Quantum 4120-1200
• Flight Battery: (Max Dimensions: 52x53x180mm)
6S 2800/4500 mAh.
6S 2800/4500 mAh.
Kit Includes:
• 18T motor pulley (other pulley sizes available)
• 500 mm main blades
• 80 mm tail blades
The following motor pulleys are available:
16T Pulley (P/N 0215-16-S) Ratio 10.33:1
18T Pulley (P/N H0215-18-S) Ratio 9.18:1
20T Pulley (P/N H0215-20-S) Ratio 8.26:1
22T Pulley (P/N H0215-22-S) Ratio 7.51:1
24T Pulley (P/N H0215-24-S) Ratio 6.91:1
17T Pulley (P/N H0215-17-S) Ratio 9.72:1
19T Pulley (P/N H0215-19-S) Ratio 8.7:1
21T Pulley (P/N H0215-21-S) Ratio 7.87:1
23T Pulley (P/N H0215-23-S) Ratio 7.19:1
19T Pulley (P/N H0215-19-S) Ratio 8.7:1
21T Pulley (P/N H0215-21-S) Ratio 7.87:1
23T Pulley (P/N H0215-23-S) Ratio 7.19:1
All these motor pulleys are for a 6 mm motor shaft. Each pulley includes an adapter for 5 mm motor shafts.
