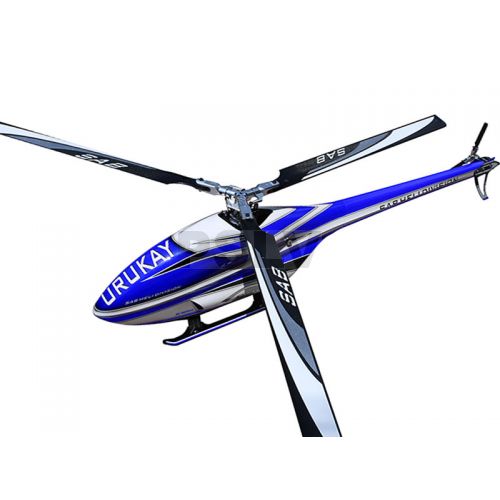

SG730 SAB Goblin URUKAY Blue/White Kit 3 Bladed Head With Blades

SG730  SAB Goblin URUKAY Blue/White Kit 3 Bladed Head With Blades

Specifications

•Main rotor diameter: 1648mm with 730mm
•HPS3 Head
•Main blade length: up to 750 mm
•Tail rotor diameter: 305 mm
•Tail blade length: 115 mm
•Main shaft diameter: 12 mm
•Tail shaft diameter: 6 mm
•Spindle shaft diameter: 10 mm
•Gear Ratios 8.6-11.9 : 1
•Weight including electronics: 4450 g (excluding flight battery).
•20T motor pulley included (other pulley sizes available)
•All pulleys are made for 6 and 8 mm motor shaft

Electronic Specifications

•Cyclic Servos: Standard size (40mm)
•Tail Servo: Standard size (40mm)
•Typical Speed Controller: 120-160A
•Motors: (Max Diameter: 64 mm, Max Height: 64 mm)
•Battery compartment: until 75x58x350mm

Kit Includes:

•20T motor pulley (other pulley sizes available)
•2 battery tray
•3BL730-2FS (730 mm main blades)
•3BW5115-S (115 mm tail blades)

The following motor pulleys are available:

18T Pulley (P/N H0175-18-S) Ratio 11.9:1
19T Pulley (P/N H0175-19-S) Ratio 11.3:1
20T Pulley (P/N H0175-20-S) Ratio 10.7:1
21T Pulley (P/N H0175-21-S) Ratio 10.2:1
22T Pulley (P/N H0175-22-S) Ratio 9.8:1
23T Pulley (P/N H0175-23-S) Ratio 9.3:1
24T Pulley (P/N H0175-24-S) Ratio 8.9:1
26T Pulley (P/N H0175-26-S) Ratio 8.6:1
