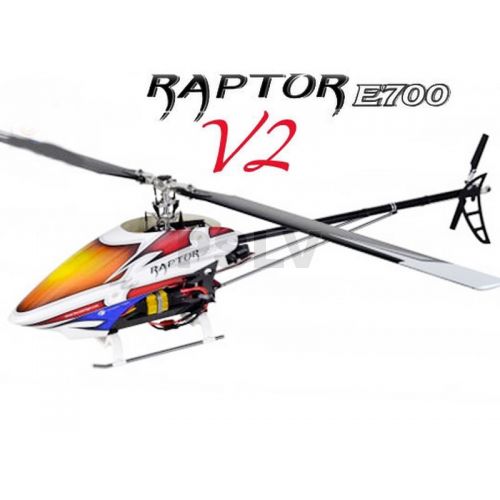

TT4761K20 Raptor E700 V2 Flybarless Helicopter Kit

TT4761K20 Raptor E700 V2 Flybarless Helicopter  Kit

The best just got better! The E700 V2 is a combination of consumer input and team pilot Nick Maxwells suggestions.
From the longer boom to the reinforced auto rotation geras, the E700 V2 continues were the E700 left off....in front.
These additional enhancements to an already solid and proven airframe ensures that it will perform all the tricks and flips you can think off.

Control System
Flybarless aluminum rotor head 135° ECCPM 8mm spindle and metal grips, integrated quick calibration system makes aligning the swash and other functions easy and precise.

Main Shaft
12mm, heat treated and hollowed for greater weight reduction.
Canopy
Fiberglass, bright orange and white with red and blue accents.
Landing Gear
Plastic frame with aluminum skids.
Tail Boom
Aluminum with lengthened supports for additional rigidity, tail boom mounted rudder servo for improved performance.
Tail Case
One-piece machined aluminum, new larger tail fin for better visibility when flying.
Tail Rotor
Optimized for wide range of head speeds, accomodates 105-116mm tail blades, stronger tail drive gears that the E700v1.
Tail Drive gears
Helical cut to increase surface area and reduce noise.
Battery Tray
Quick-remove, mounted low for perfect CG.

Specification
●Swashplate: ECCPM(135~140°)
●Fuselage Height:385mm
●Fuselage Width: 191mm
●Fuselage Length:1277mm
●Rotor Blade:690~700mm Req’d
●Rotor Dia.:1538~1558mm
●Tail Blade: 105mm(9.28”) incl’d
●Tail Rotor Dia.:280mm
●Weight w/o Battery: 2917g
●Tail Driven: Torque Tube
●Rotor Speed: 2200~2300 RPM
●Motor: approx. 510~560KV Dia. : 52mm
●ESC: 120A~160A
●Gear Ratio (E:M:T): 9.85 : 1: 4.27
●Battery: Lipo, 12S (6S x 2) 5Ah, 30C
●Battery Dimension: 160 x 50 x 65mm
