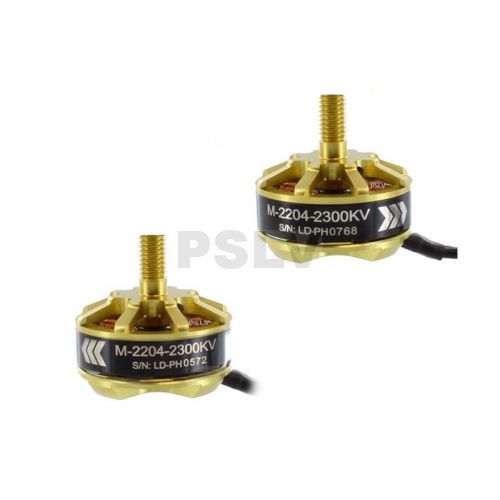

SCO-SS280M04-01 Scorpion M2204 2300KV Motor Set 1STD, 1REV FPV 250

SCO-SS280M04-01 Scorpion M2204 2300KV Motor Set 1STD, 1REV FPV 250

One box includes one CW motor and one CCW motor.

Get maximum power for your FPV 250/280 racer !!

Specifications:

Stator Diameter 22 mm (0.87 in)
Stator Thickness 4.5mm (0.177 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 14+15 Turn Delta
Motor Wire 3-Strand 0.21 mm
Motor Kv 2300 RPM / Volt
No-Load Current (Io/10V) 0.7 Amps
Motor Resistance (Rm) 0.123 Ohms
Max Continuous Current 14 Amps
Max Continuous Power 175 Watts
Weight 25 Grams (0.88 oz)
Outside Diameter 27.9 mm (1.09 in)
Shaft Diameter 2.98 mm (0.12 in)
Body Length 16.5 mm (0.65 in)
Overall Shaft Length 16 mm (0.63 in)
Max Lipo Cell 3s
Motor Timing 5 deg
Drive Frequency 8 kHz

Included in the Box:
M2.5 *8
M3 *4
M-2204-2300kv motor *2
Bullet nuts *2
Weight including packaging 168g
