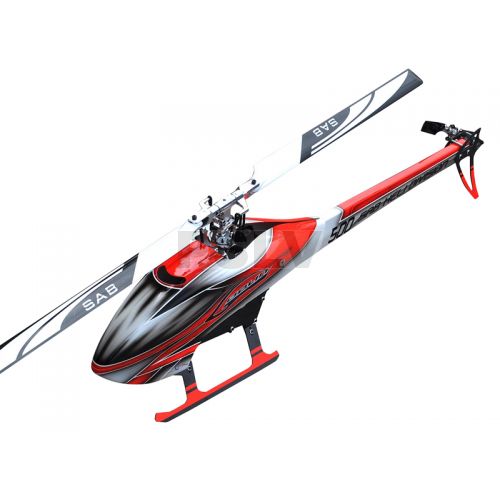

SG500 Sab Goblin 500 Flybarless Electric Helicopter Red/White Kit

Les photos sont donne a titre indicatif et non contractuel
Cliquer pour agrandir

Prix :633,35€

Disponibilité : En Rupture de stock

Me prévenir du retour en stock

Modèle :	SG500
Fabricant :	SAB

Tweet	Share to facebook

Description Plus d'images (0) Pièces détachées (0)

SG500 Sab Goblin 500 Flybarless Electric Helicopter Red/White Kit

General Specifications

Electronic Specifications

• Main rotor diameter: 1136mm (with 500 mm blades)

• HPS Head (FBL Only)

• Main blade length: 470 to 500mm

• Tail rotor diameter: 226 mm

• Tail blade length: 80 mm

• Main shaft diameter: 10 mm

• Tail shaft diameter: 5 mm

• Spindle shaft diameter: 8 mm

• Gear Ratios 6.9-11 : 1

• Weight including electronics: 1900 g (excluding flight battery).

Special Features:

• Full carbon fiber boom

• Quick release battery tray system

• Sacrificial breaking point for landing gear and boom

• Unique “inside the boom” tail push rod design

• Cyclic Servos: Mini size (36mm)
Normal and 3D Flight: Hitec 5245 MG, Align DS510M or DS515M, Savox SH1250, Graupner DES 678 MG, MKS DS-9660A, Futaba 9650
HARD 3D: Futaba BLS153, Graupner HBS660 HV, JR DS3717 HV, HITEC 7245 MG HV, JR DS3711 HV

• Tail Servo: Standard size (40mm)

• Typical Speed Controller: 80/100A
Normal and 3D Flight: Kontronik Koby 90, YGE 100 LV
HARD 3D: Kontronik Jive 100 LV, YGE 120 LV, CC Talon 90

• Motors: (Max Diameter: 52 mm, Max Height: 52 mm)
Normal and 3D Flight: Scorpion HK-4015-1070, Quantum 4115-1200
HARD 3D: PYRO 600-1200, Scorpion, HKIII-4020-1100/1350, Quantum 4120-1200

• Flight Battery: (Max Dimensions: 52x53x180mm)
6S 2800/4500 mAh.

Kit Includes:

• 18T motor pulley (other pulley sizes available)

• 500 mm main blades

• 80 mm tail blades

Pulleys Available:

15T Pulley (P/N H0215-15-S) Ratio 11:1

17T Pulley (P/N H0215-17-S) Ratio 9.72:1

19T Pulley (P/N H0215-19-S) Ratio 8.7:1

21T Pulley (P/N H0215-21-S) Ratio 7.87:1

23T Pulley (P/N H0215-23-S) Ratio 7.19:1

16T Pulley (P/N 0215-16-S) Ratio 10.33:1
18T Pulley (P/N H0215-18-S) Ratio 9.18:1
20T Pulley (P/N H0215-20-S) Ratio 8.26:1
22T Pulley (P/N H0215-22-S) Ratio 7.51:1
24T Pulley (P/N H0215-24-S) Ratio 6.91:1

All these motor pulleys are for a 6 mm motor shaft. Each pulley includes an adapter for 5 mm motor shafts.


• Identical concept as Goblin 700 • Simple and effective design	• Carbon fiber boom for maximum rigidity	• HPS (High Precision Head System) • 10mm high strength steel main shaft • 8mm high strength steel spindle shaft	• Large tail pulleys for increased tail authority • Dampened tail system for increased vibration tolerance


• Unique, extremely rigid transmission design • Stiffness of the model defined by a single component • Heat tolerant primary drive belt	• Carbon fiber tail push rod hidden inside the boom for an aesthetically pleasing, unique design	• Nylon bolt break-away system to preserve the boom during a crash	• Landing gear mounting brackets don’t require bolts to be installed. The brackets are a break point during a crash preserving frames and other important parts


• Quick release battery tray system	• Plenty of room for electronic components	• Mini size cyclic servos • Direct and geometrically correct servo placement	• Standard size tail servo
