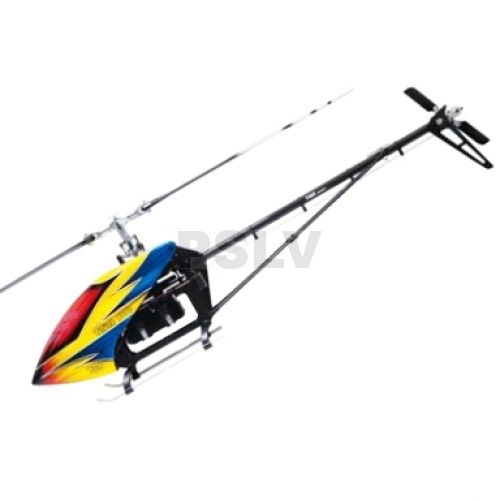

TSA700E TSA Model Infusion 700E Pro Elec Helicopter Kit

TSA700E     TSA Model Infusion 700E Pro Elec Helicopter Kit

(Livre sans Gyro!!!!)

Servo support bracing increases rigidity and reduces servo loading. Innovatively designed elevator control mechanism eliminates the need for an anti rotation guide. This ensures a precise, rigid and smooth operation system.
7 axis CNC machine produces a cutting edge high tolerance rotor head system. The 10mm feathering spindle provides rigidity for the most demanding of 3d style flying. Together this leads to a responsive consistent flying model.
Electronic mounting points are conveniently provided throughout the model. This ensures all installations are neat, with multiple layout configurations provided.
Dedicated in-flight mixture servo locations are standardized throughout the TSA gas/nitro range. This provides enhanced tuning capabilities which increases power and maximizes engine longevity.
Frame stiffeners located in high load areas for increased rigidity and robustness.
Both main and tail gears manufactured from high strength polymer impregnated metal. This ensures a durable and rigid drive line. Common components are used in both the primary and final drive gearboxes, providing a more user friendly approach of simplicity.
Tail bevel gears are manufactured from polymer impregnated metal along with an all aluminum construction, providing durability and strength in a light weight configuration. For precision and reliability, each tail rotor grip is equipped with a dual radial and thrust bearing.

Infusion 700E Pro Specifications:

Full Length of Fuselage: 1845mm
Full Width of Fuselage: 215mm
Height: 410mm
Flying Weight (approx): 5200g
Main Rotor Diameter: 1580mm
Tail Rotor Diameter: 262mm
Engine Class: 3000W / 555kv
Gear Ratio: 11.45 / 10.5 / 9.69:1
Main Gear Ratio: 11T / 12T / 13T:126T
Tail Gear Ratio: 113T:25T
Material Specification: Carbon Fiber, Aluminum
Tail Rotor Drive: Shaft drive
Swashplate Angle: 120°
Main Blade (not included): 680-710mm
Tail Blade (not included): 90-110mm
Power Battery (not included): 12S 4200-8000mAh

Includes:

Infusion 700E Pro Kit

Needed to Complete:

7-Channel Radio System
(1) Receiver Battery & Charger
(1) On/Off Switch
(3) Servos
(1) Rudder Servo
(1) 3000W 555kV Brushless Motor
(1) 120A Brushless ESC
(2) 6S 22.2V 4200mAh LiPo Battery Pack
680-710mm Main Blades
90-110mm Tail Blades
FlyBarless Gyro
