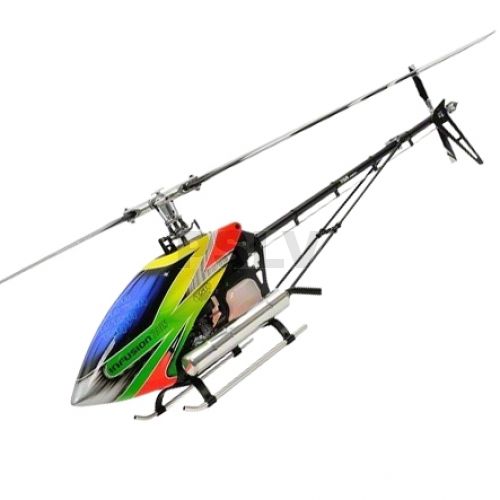

TSA700N TSA Model Infusion 700N Pro Nitro Kit

TSA700N  TSA Model Infusion 700N Pro Nitro Kit

Infusion 700N Pro Features:

● Servo support bracing increases rigidity and reduces servo loading.
● designed elevator control mechanism eliminates the need for an anti rotation guide. This ensures a precise, rigid and smooth operation system.
● 7 axis CNC machine produces a cutting edge high tolerance rotor head system. The 10mm feathering spindle provides rigidity for the most demanding of 3d style flying. Together this leads to a responsive consistent flying model.
● Electronic mounting points are conveniently provided throughout the model. This ensures all installations are neat, with multiple layout configurations provided.
● Dedicated in-flight mixture servo locations are standardized throughout the TSA gas/nitro range. This provides enhanced tuning capabilities which increases power and maximizes engine longevity.
● Frame stiffeners located in high load areas for increased rigidity and robustness.
● Both main and tail gears manufactured from high strength polymer impregnated metal. This ensures a durable and rigid drive line. Common components are used in both the primary and final drive gearboxes, providing a more user friendly approach of simplicity.
● Tail bevel gears are manufactured from polymer impregnated metal along with an all aluminum construction, providing durability and strength in a light weight configuration. For precision and reliability, each tail rotor grip is equipped with a dual radial and thrust bearing.

Infusion 700N Pro Specifications:
Full Length of Fuselage: 1845mm
Full Width of Fuselage: 215mm
Height: 419mm
Flying Weight (approx): 4420g
Main Rotor Diameter: 1580mm
Tail Rotor Diameter: 262mm
Engine Class: 90-120
Gear Ratio: 8:4:1/8:0:1
Main Gear Ratio: 15T:126T / 120T
Tail Gear Ratio: 113T:25T
In-Flight Mixture Needle: Yes
Full Tank Capacity: 650CC
Material Specification: Carbon Fiber, Aluminum
Tail Rotor Drive: Shaft drive
Swashplate Angle: 120°
Main Blade (not included): 680-710mm
Tail Blade (not included): 90-110mm

Trajectory Gyro System Features:

● Single unit, no additional sensors to install
● Aluminum and composite case
● Lightweight (28g) including mounting pad and wires
● Suitable for Nitro or Electric use
● Multiple mounting positions
● Simple programming without PC, laptop or console
● PPM / S-BUS / Spektrum satellite receiver compatible
● Compatible with 90, 120, or 140 degree swashplates
